Extensometers

We provide our valued clients mechanical/electronic Extensometer.

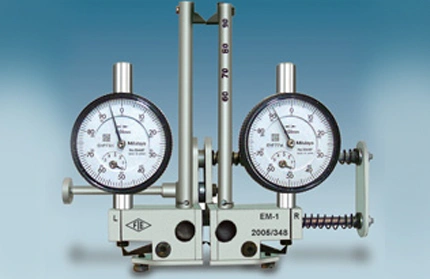

Mechanical Extensometer

Model – EM-1

We provide our valued clients Extensometer that consists of two movable frames both pivoted at one end.

  • Measuring Range - 0 to 3mm
  • Least Count - 1/100 mm
  • Guage Length (Adjustable) - 30 to 120 mm
  • Thickness or diameter of specimen - 1 to 40 mm
  • Dimensions - B x D x H - 120 x 50 x 150 mm Approx.
  • Net Weight - 0.3 kg Approx.
Send Enquiry
Download PDF
Material testing machines service providers

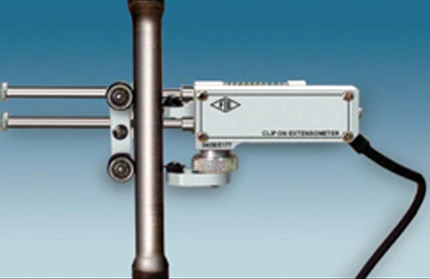

Electronic Extensometer

Model – EE-2

  • Measuring Range - 0 to 2mm
  • Least Count - 0.001 mm
  • Guage Length - 25, 30, 45 & 50 mm
  • Thickness or diameter of specimen - 1 to 20 mm
  • Excitation - + 5 VDC
  • Out put (Approx) - 20 mV full scale
Send Enquiry
Download PDF
